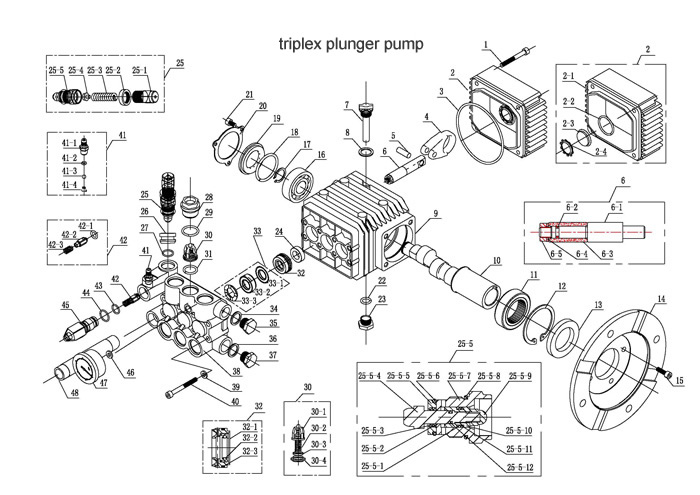

triplex plunger pump
Triplex plunger pump parts list
Serial No.
Item Name
Specification
quantity/pc
Serial No.
Item Name
Specification
quantity/pc
1
hex bolt
M6*50
4
25–5–8
O ring
17*1.8
1
2
back shell parts
1
25–5–9
nut
M5
1
2–1
back shell
1
25–5–10
unloader parts
1
2–2
O ring
28*2.4
1
25–5–11
stop collar
1
2–3
oil window
1
25–5–12
O ring
3.55*1.8
1
2–4
oil window seal
1
26
unloader base
1
3
O ring
95*3.1
1
27
O ring
8*1.8
1
4
rod
3
28
stop plug
6
5
plunger pin
3
29
O ring
20*2.65
6
6
plunger parts
3
30
in/out valve part
6
6–1
plunger
3
30–1
in/out valve shell
6
6–2
O ring
7.1*1.8
3
30–2
in/out valve spring
6
6–3
ceramic plunger
φ18
3
30–3
in/out valve part
6
6–4
brass washer
3
30–4
in/out valve base
6
6–5
plunger bolt
3
31
O ring
17*2.65
6
7
dipstick
1
32
seal part
3
8
O ring
13.2*1.8
1
32–1
seal base
3
9
Shell
1
32–2
seal ring
18*25*5.5
3
10
Shaft
φ24*12
1
32–3
O ring
26.5*1.8
3
11
Ball Bearing set
1
33
seal
18*28*9.75
3
12
62 stop collar
φ62
1
33–1
washer
3
13
turning grease seal
1
33–2
main seal
3
14
flange
1
33–3
seal ring
1
15
inner hex screw
M6*20
4
34
stop plug washer
1
16
ball bearing
304
1
35
stop plug
1
17
stop collar
φ20
1
36
stop plug washer
1
18
O ring
43.7*3.55
1
37
stop plug
1
19
shell
1
38
brass pump body
1
20
seal
1
39
spring washer
φ6
6
21
inner hex screw
M5*10
3
40
inner hex screw
M6*55
6
22
O ring
11.8*2.65
1
41
connector parts
1
23
oil discharge knob
1
41–1
connector
1
24
turning oil seal
3
41–2
O ring
4*1.8
1
25
unloader parts
1
41–3
stainlesssteel ball
φ5.5
1
25–1
unloader parts
1
41–4
mixing spring
1
25–2
unloader screw
1
42
single valve part
1
25–3
unloader spring
1
42–1
O ring
9*2.4
1
25–4
unloader spring base
1
42–2
single valve
1
25–5
unloader parts
1
42–3
single valve spring
1
25–5–1
O ring
7.1*1.8
1
43
O ring
12.5*1.8
1
25–5–2
O ring
6*1.8
1
44
O ring
16*1.8
1
25–5–3
washer
1
45
fluid
1
25–5–4
unloader parts
1
46
guage washer
1
25–5–5
unloader parts
1
47
guage
1
25–5–6
O ring
14*1.8
1
48
water inlet hose
1
25–5–7
unloader parts
1
